7 Summits
This project brought together both 3D printing and laser cutting in an exercise to design for a specific market through the development of a frangrance bottle and the corresponding visual display stand. In this case, the target market is the mountaineer with the fragrance titled “7 Summits” taking inspiration from the tallest peaks across the 7 continents:
- Asia Mount Everest 8,848 m
- South America Aconcagua 6,961 m
- North America Denali 6,194 m
- Africa Kilimanjaro 5,895 m
- Europe Elbrus 5,642 m
- Antarctica Mount Vinson 4,892 m
- Australasia Puncak Jaya 4,884 m

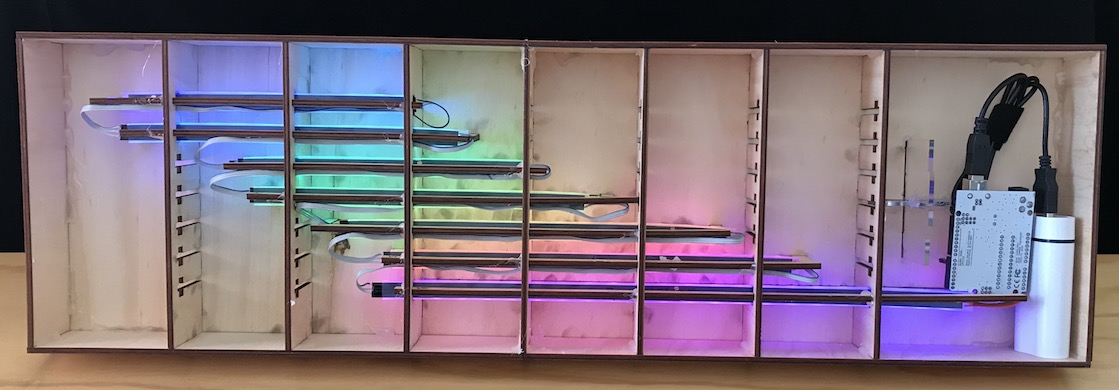

These are depicted as edge-lit laser cut acrylic forms on the display stand.

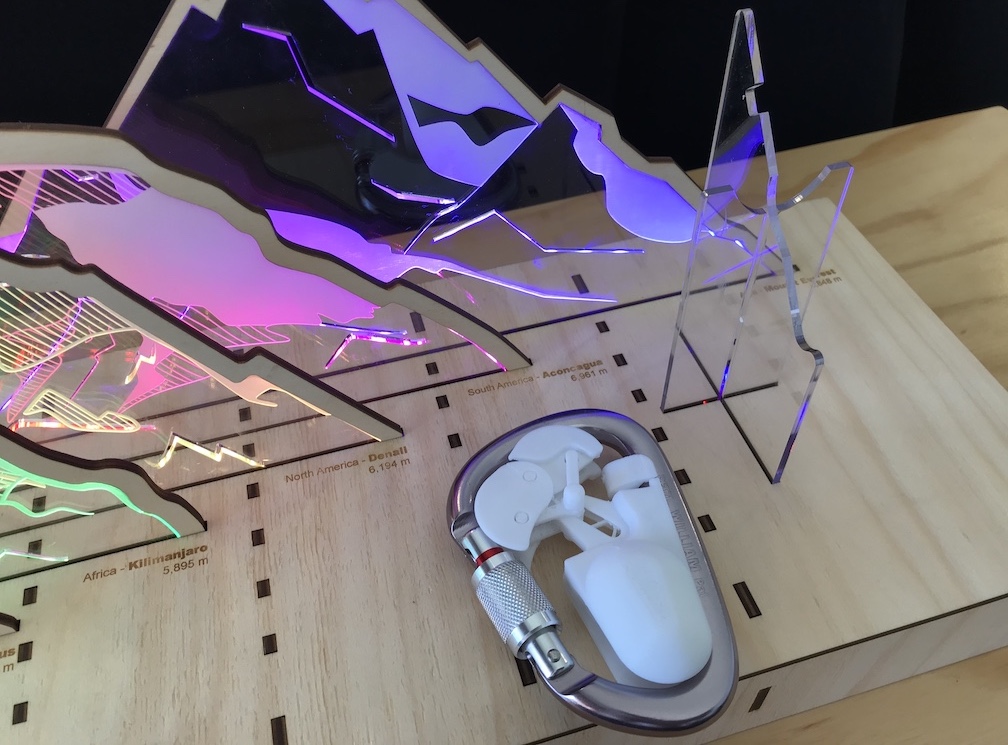

Demonstration and close up of operation.
3D Printing the prototype fragrance bottle with the dual head printer and soluble support material.
Laser etching and cutting the clear acrylic for the display stand.

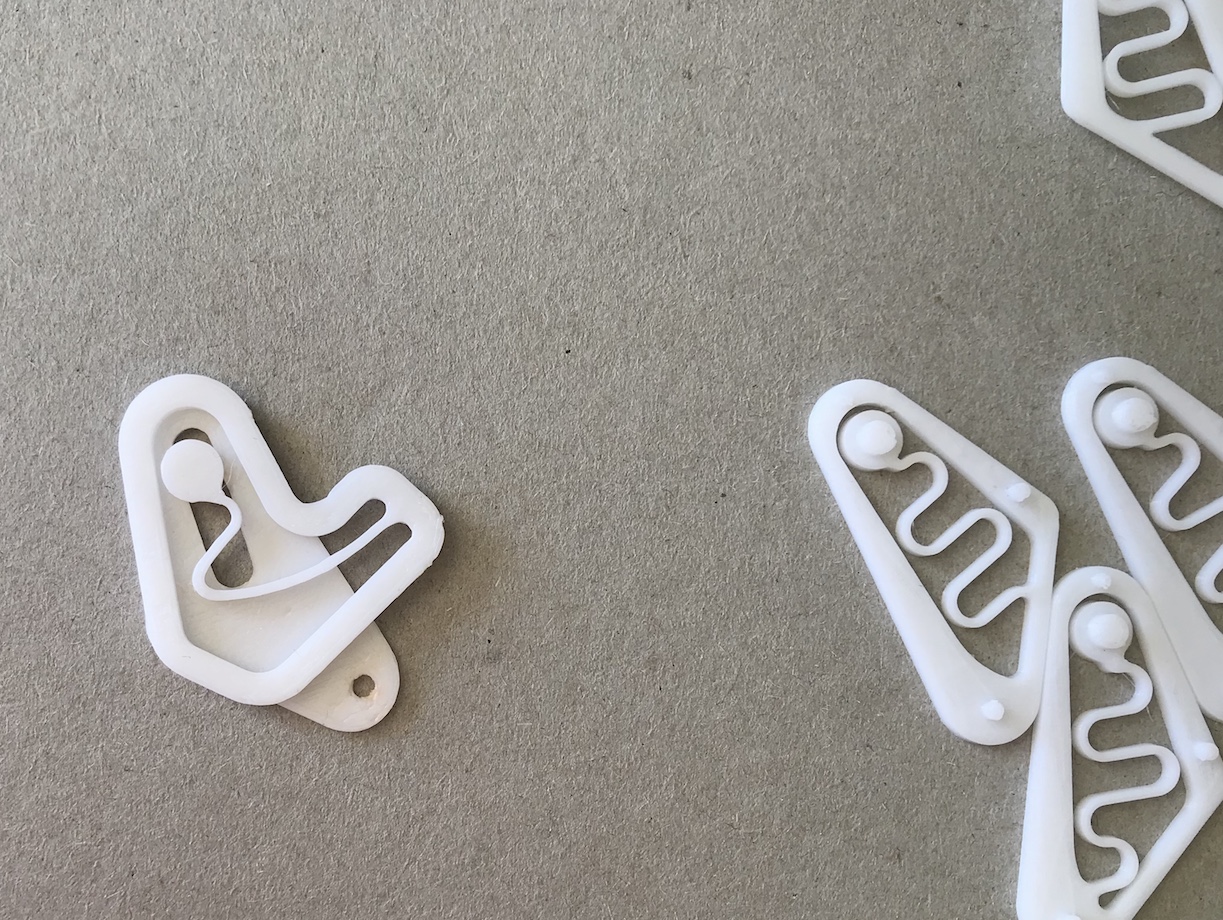

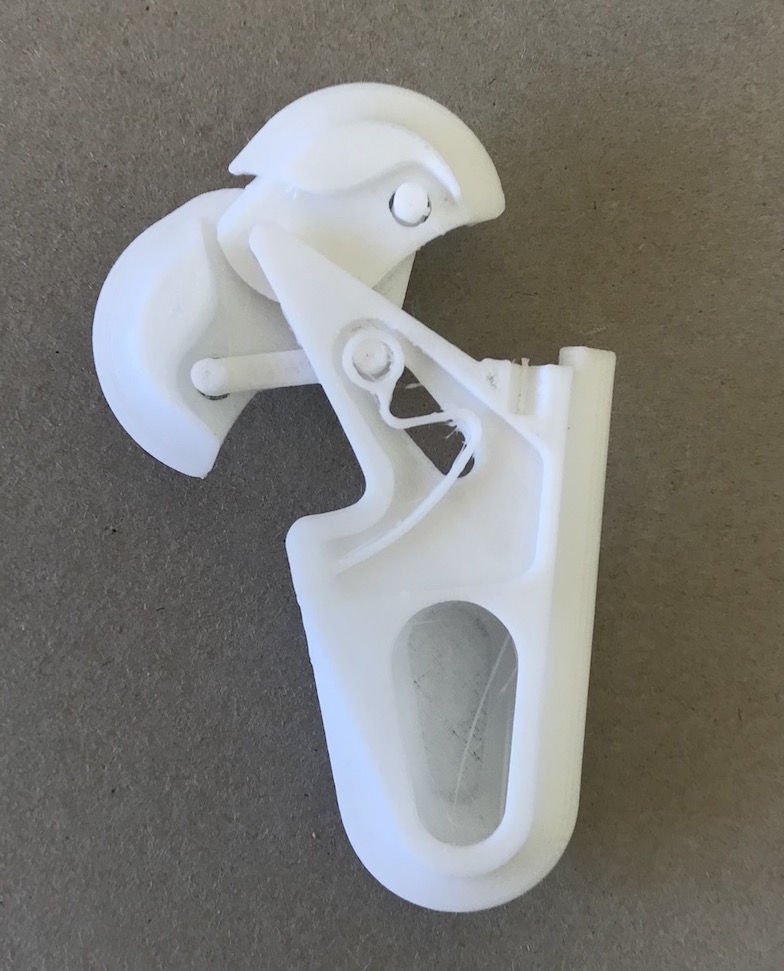

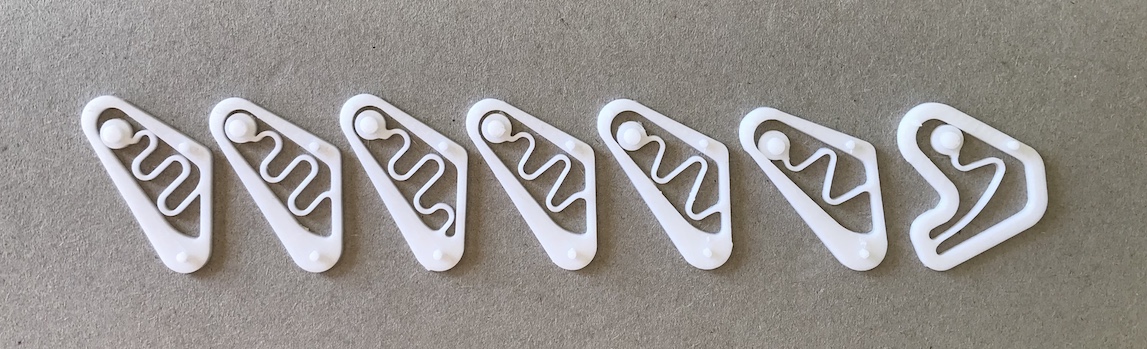

Demonstration of the fragrance delivery mechanism.
Skills and Technologies
Software
- Autodesk Fusion 360
- Ultimaker Cura
- Adobe Illustrator
- Trotec JobControl
- Arduino IDE
- Adobe InDesign
Manufacturing Process
- 3D Printing
- Dual Head 3D Printing
- Laser Cutting
- Laser Etching
- Soldering
Materials
- Acrylic
- Plywood
Technologies
- Arduino
- NeoPixels
