Bike Light Redesign

In this project, I dismantled an existing bicycle light to design a new tail light incorporating the internal electronic components. The design calls for a plastic chassis wrapped in a silicon rubber sleeve. The angle between the light arrangement and the mounting bracket allows for the light to sit vertically whilst being mounted on a swept back seat post. A buckle system allows the flexibility to accommodate 5 different seat post diameters.

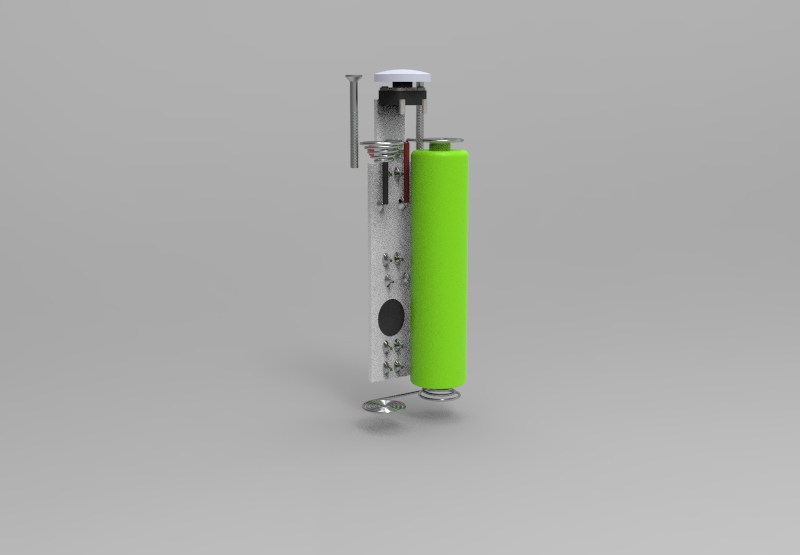

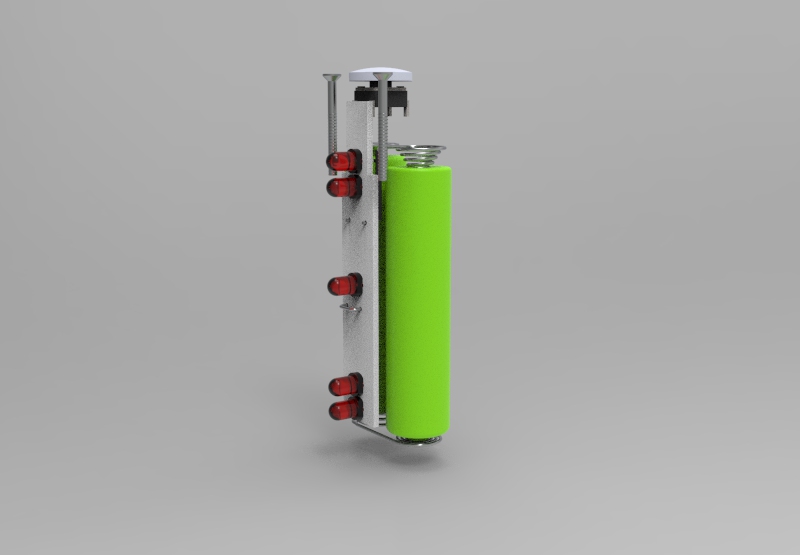

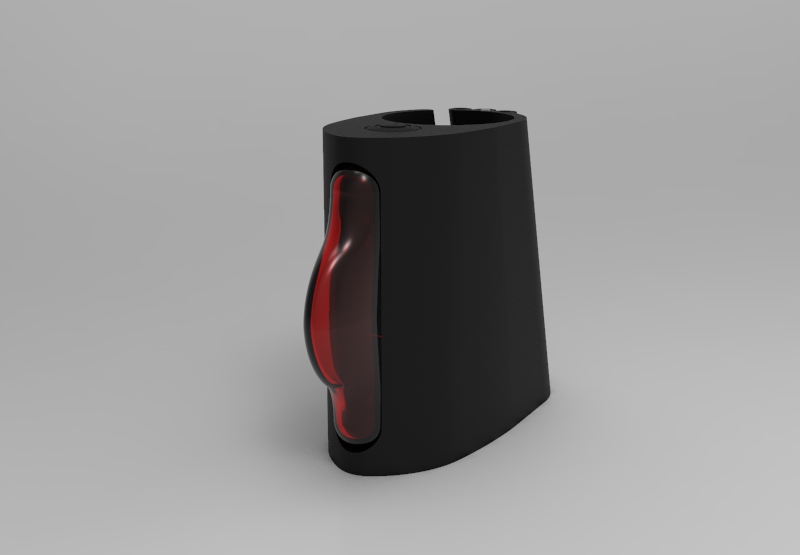

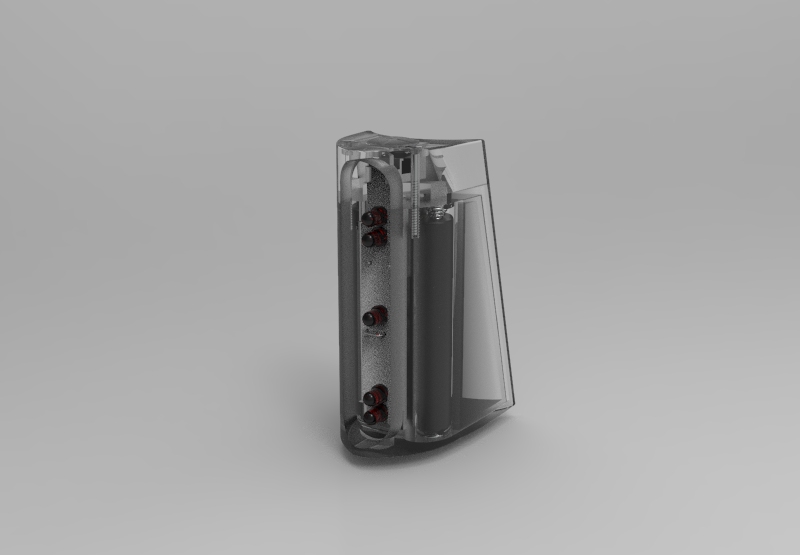

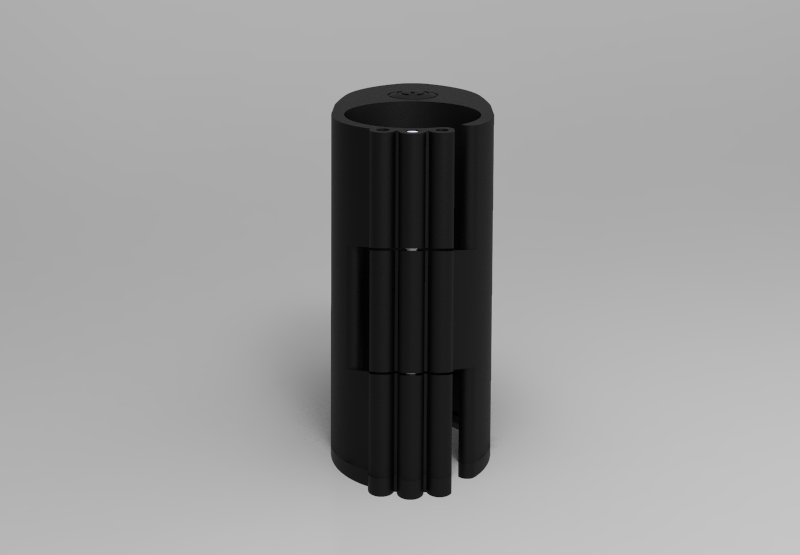

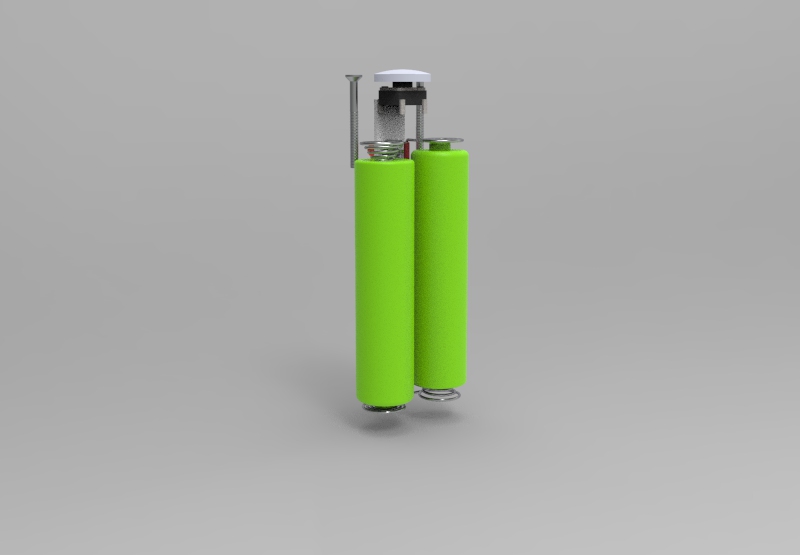

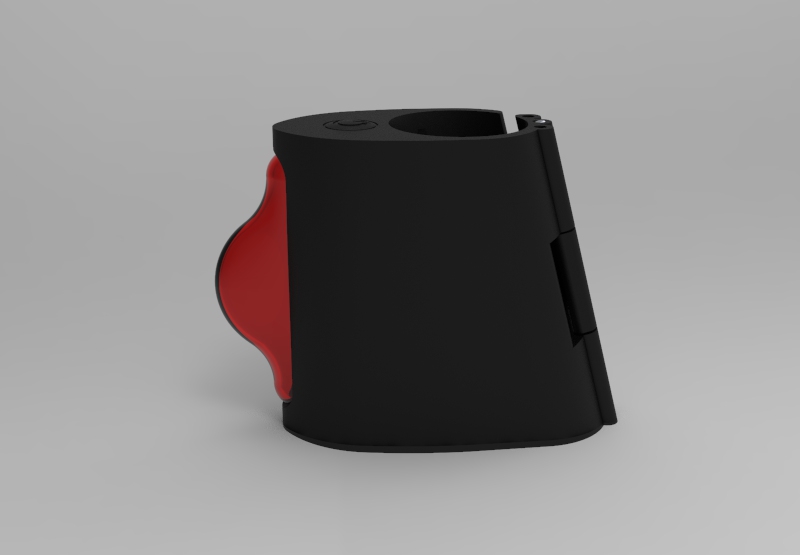

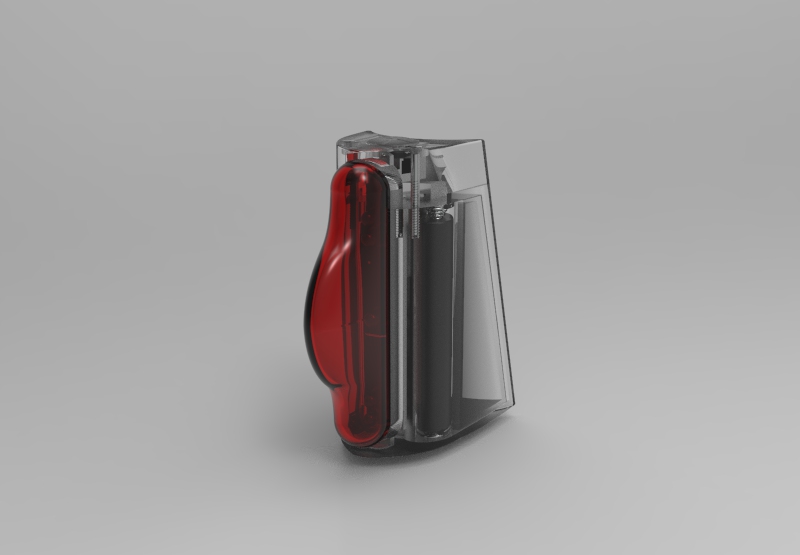

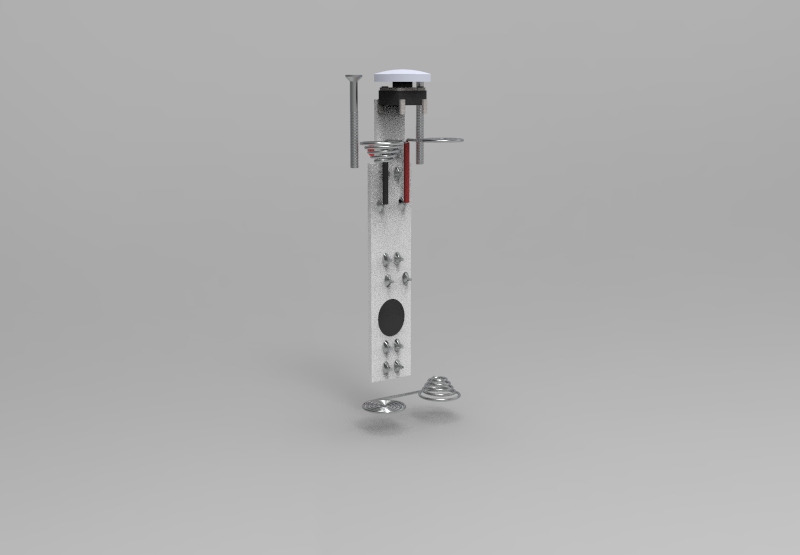

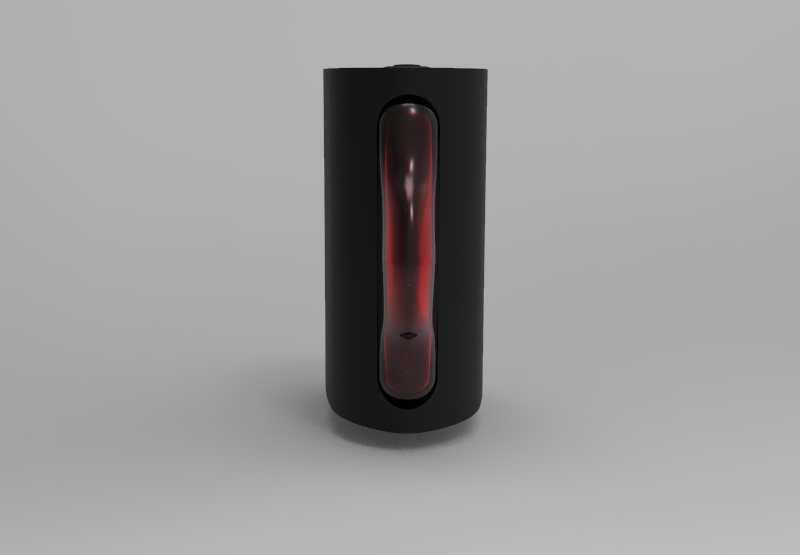

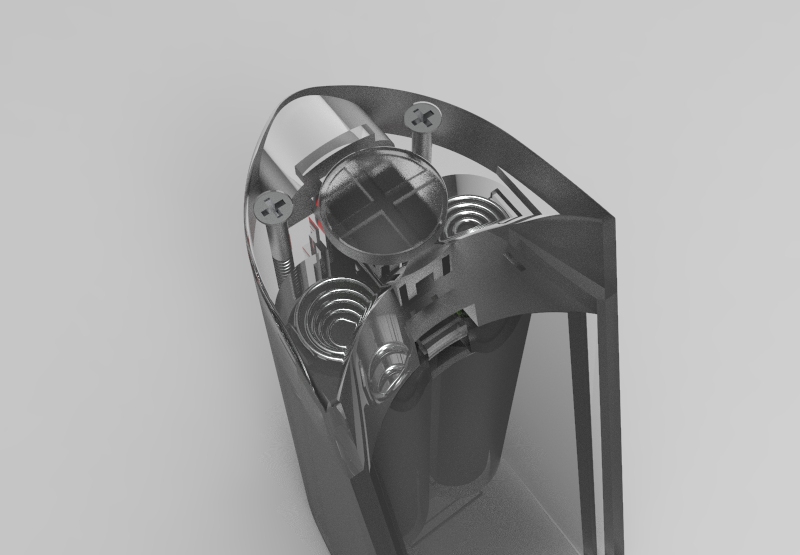

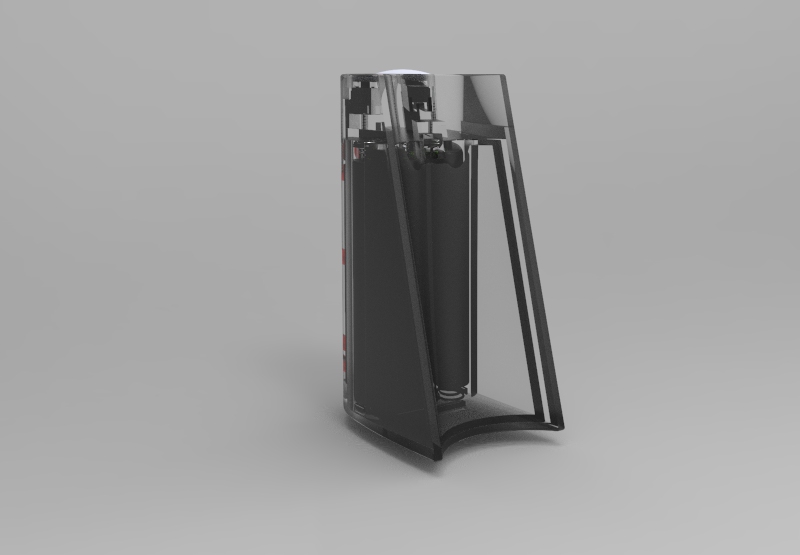

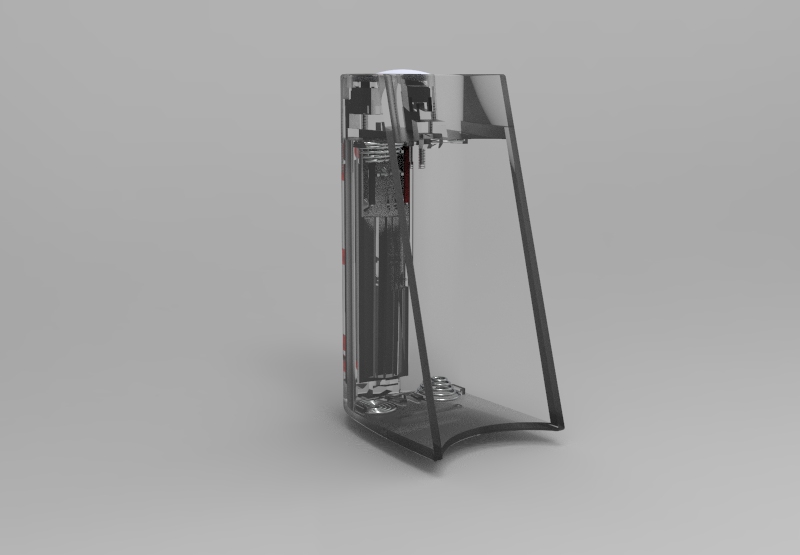

Modeling was completed in Solidworks, the following images are renders from Keyshot.

Skills and Technologies

Software

• Solidworks
• Keyshot
